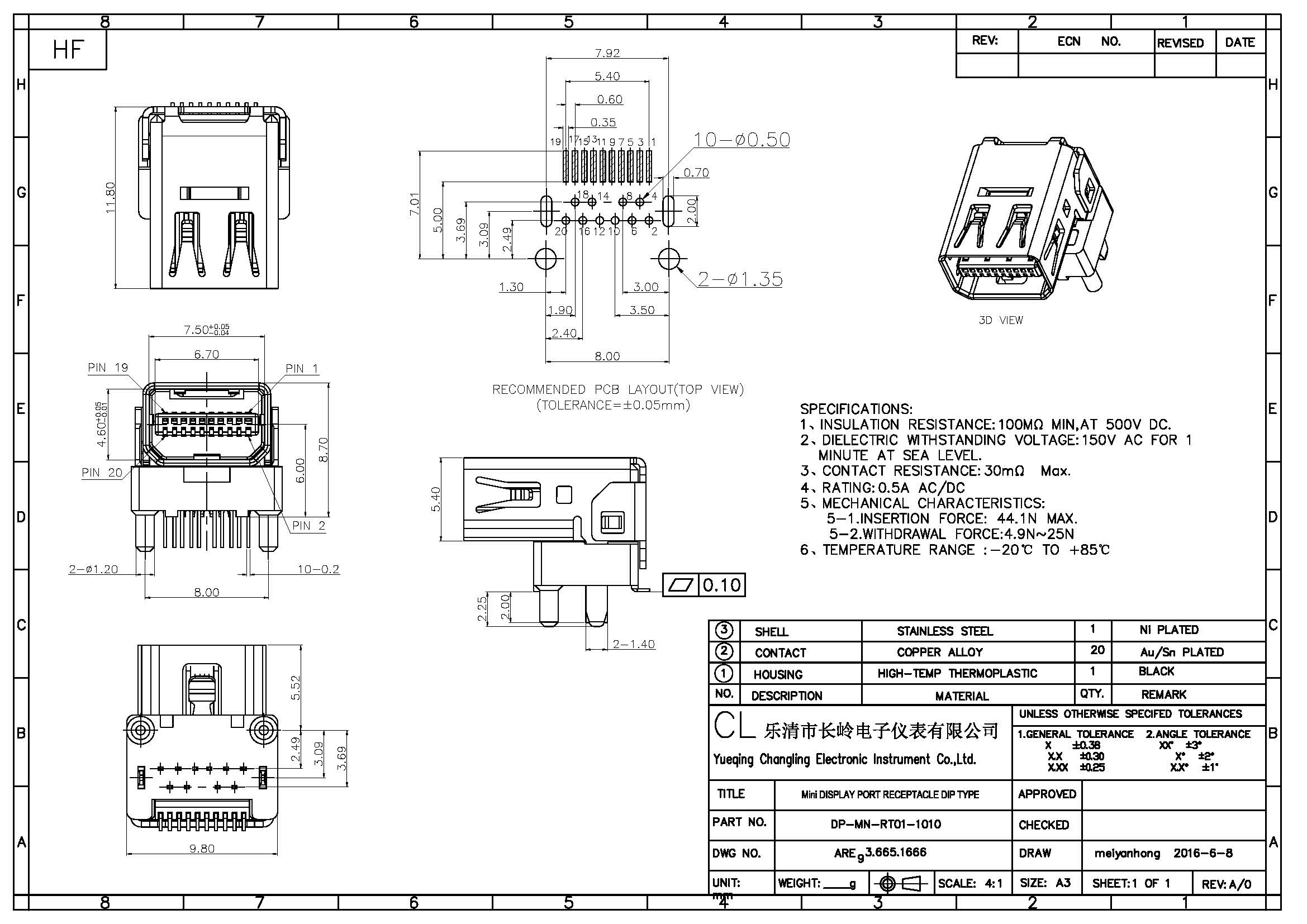

NOTES:

1.MATERIAL SPECIFICATION
  1-1.HOUSING: LCP+30% G.F BLACK UL94 V-0.
  1-2.CONTACT: BRASS(C2680R-H) T=0.20mm.
  1-3.SHELL: STAINLESS STEEL(SUS304R-1/2H) T=0.40mm.
2.PLATING SPECIFICATION
  2-1.CONTACT: NI50u'' UNDER PLATED,GOLD FLASH PLATED ON THE FUNCTIONAL AREA OF CONTACT,GOLD PLATING OR TIN ON SOLDER AREA.
  2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
  3-1.INSERTION FORCE: 44.1N (4.5 KGF) MAX.
  3-2.WITHDRAWAL FORCE: 4.9N~25N(0.5KGF~2.5KGF).
  3-3.DURABILITY: 5000 CYCLES.
4.ELECTRICAL PERFORMANCE
  4-1.CURRENT RATING: 0.5A.
  4-2.LLCR: CONTACT: 30 mΩ MAX(INITIAL), SHELL: 50 mΩ MAX(INITIAL).
  4-3.INSULATION RESISTANCE:
   A:UNMATED: 100 MΩ MIN. AT 500V DC.
   B:MATED: 10 MΩ MIN. AT 150V DC.
  4-4.DIELECTRIC WITHSTAND VOLTAGE:
  150V AC/60S(MATED), 250V AC/60S(UNMATED).
5.IR REFLOW:
  THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -25°C~85°C(WITHOUT LOSS FUNCTION).
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
