PCI-express 164pin Slot. vertical type. w/Latch. Footprint: DIP type
所属分类:Edge Card Connectors

产品型号:PCI-E-V08-1010

点击次数:130

打印当前页

放入收藏夹

NOTES:
1.MATERIAL SPECIFICATION
 1-1.HOUSING: PA66+30% G.F BLACK UL94 V-0.
 1-2.CONTACT: C2680-1/2H T=0.25mm.
 1-3.LATCH: SUS304 T=0.30mm.
2.PLATING SPECIFICATION
 2-1.CONTACT: NI30u'' MIN. UNDER PLATED,GOLD FLASH PLATED ON
   THE FUNCTIONAL AREA OF CONTACT, TIN 80U" MIN. ON SOLDER AREA.
 2-2.LATCH: MATTE TIN. 60U" MIN.
3.MECHANICAL PERFORMANCE
 3-1.INSERTION FORCE: 1.15N PER CONTACT PAIR MAX.
 3-2.WITHDRAWAL FORCE: 0.15N PER CONTACT PAIR MIN.
 3-3.DURABILITY: 50 CYCLES.
4.ELECTRICAL PERFORMANCE
 4-1.CURRENT RATING: 1.1A PER PIN MIN.
 4-2.LLCR: CONTACT: 30 mΩ MAX.
 4-3.INSULATION RESISTANCE: 1000 MΩ MIN.
 4-4.DIELECTRIC WITHSTAND VOLTAGE: 500V DC/60S.
5.WAVE SOLDING:
 THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10
 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -45°C~105°C.
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

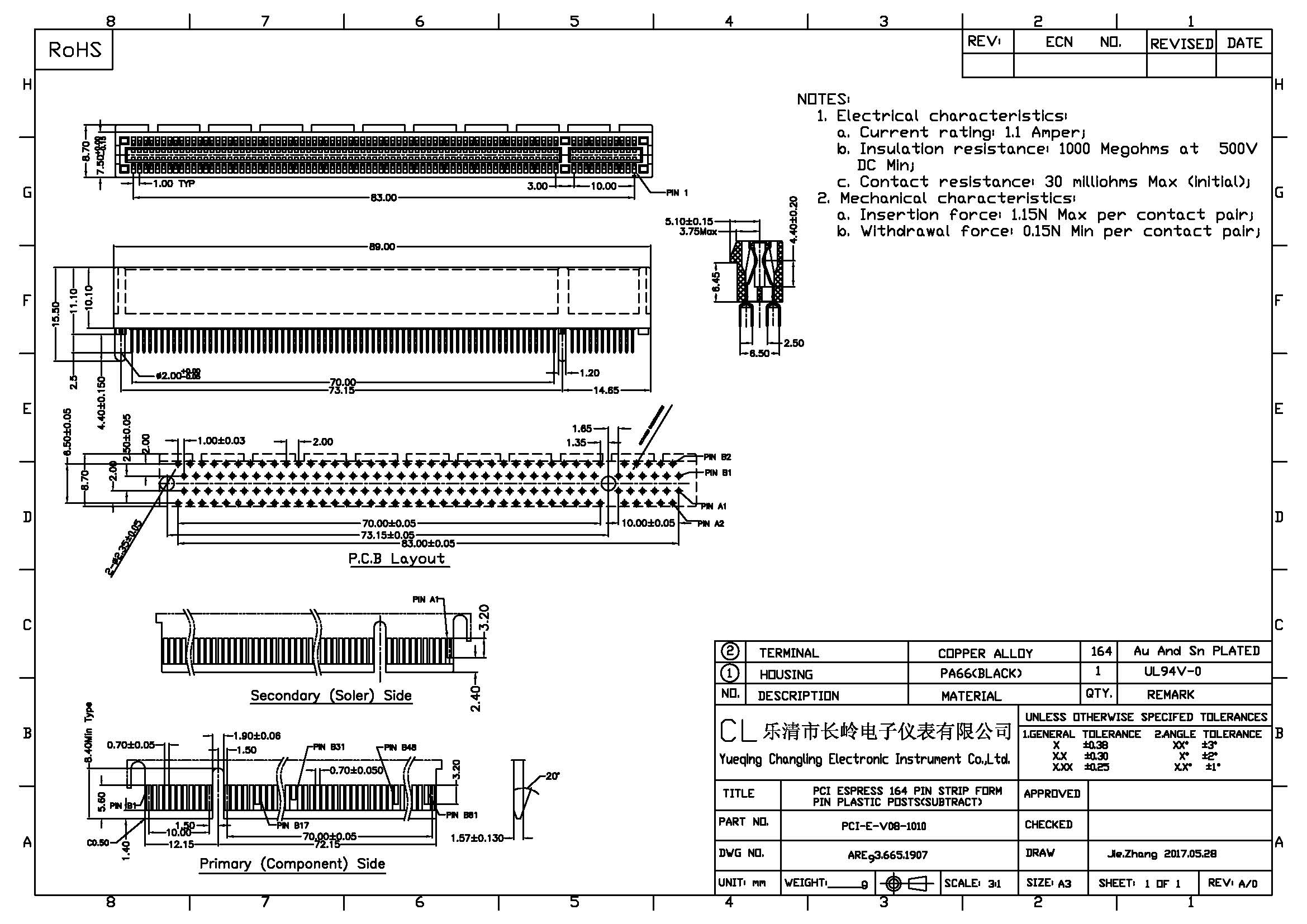

安装尺寸 点击放大
