PCI-express 64pin slot. vertical type. w/Latch. Footprint: DIP type.
所属分类:Edge Card Connectors

产品型号:PCI-E-V0X-XXXX

点击次数:72

打印当前页

放入收藏夹

NOTES:
1.MATERIAL SPECIFICATION
 1-1.HOUSING: LCP+30% G.F BLACK UL94 V-0.
 1-2.CONTACT: COPPER ALLOY T=0.25mm.
2.PLATING SPECIFICATION
 2-1.CONTACT: NI30u'' MIN. UNDER PLATED,GOLD FLASH PLATED ON
   THE FUNCTIONAL AREA OF CONTACT, TIN 80U" MIN. ON SOLDER AREA.
3.MECHANICAL PERFORMANCE
 3-1.INSERTION FORCE: 1.15N PER CONTACT PAIR MAX.
 3-2.WITHDRAWAL FORCE: 0.15N PER CONTACT PAIR MIN.
 3-3.DURABILITY: 50 CYCLES.
4.ELECTRICAL PERFORMANCE
 4-1.CURRENT RATING: 1.1A PER PIN MIN.
 4-2.LLCR: CONTACT: 30 mΩ MAX.
 4-3.INSULATION RESISTANCE: 1000 MΩ MIN.
 4-4.DIELECTRIC WITHSTAND VOLTAGE: 500V DC/60S.
5.OPERATING TEMPERATURE RANGE: -25°C~85°C(WITHOUT LOSS FUNCTION).
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

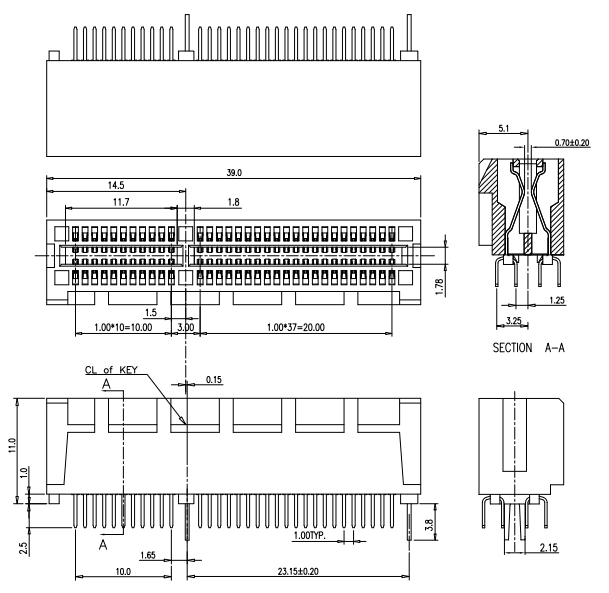

安装尺寸 点击放大
